Spring5.2.9源码再梳理

发表于 更新于 分类于 阅读次数： 阅读次数：

ApplicationContext

ApplicationContext作为spring的顶级父类，统一管理spring所有的东西，同时也是spring启动的入口
今天主要看下基于注解的启动方式，同时该方式也是springboot默认接入的启动方式

1
2
// 基于注解的servlet web环境启动入口
org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// 核心方法，刷新容器内容
@Override
public final void refresh() throws BeansException, IllegalStateException {
    try {
        super.refresh();
    }
    catch (RuntimeException ex) {
        // 如果发生了异常，则关闭webserver
        WebServer webServer = this.webServer;
        if (webServer != null) {
            webServer.stop();
        }
        throw ex;
    }
}

AbstractApplicationContext

applicationContext整个启动流程全都在抽象类中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
@Override
public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
        // Prepare this context for refreshing.
        prepareRefresh();

        // Tell the subclass to refresh the internal bean factory.
        // 告诉子容器，当前正在刷新beanFactory
        // 当没有指定beanFactory时，默认使用：DefaultListableBeanFactory
        ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

        // Prepare the bean factory for use in this context.
        // 初始化容器前的准备工作
        prepareBeanFactory(beanFactory);

        try {
            // Allows post-processing of the bean factory in context subclasses.
            // 资源定位，即：定位需要spring管理bean的位置
            postProcessBeanFactory(beanFactory);

            // Invoke factory processors registered as beans in the context.
            // 调用前置处理器
            invokeBeanFactoryPostProcessors(beanFactory);

            // Register bean processors that intercept bean creation.
            registerBeanPostProcessors(beanFactory);

            // Initialize message source for this context.
            initMessageSource();

            // Initialize event multicaster for this context.
            initApplicationEventMulticaster();

            // Initialize other special beans in specific context subclasses.
            onRefresh();

            // Check for listener beans and register them.
            registerListeners();

            // Instantiate all remaining (non-lazy-init) singletons.
            finishBeanFactoryInitialization(beanFactory);

            // Last step: publish corresponding event.
            finishRefresh();
        }

        catch (BeansException ex) {
            if (logger.isWarnEnabled()) {
                logger.warn("Exception encountered during context initialization - " +
                        "cancelling refresh attempt: " + ex);
            }

            // Destroy already created singletons to avoid dangling resources.
            destroyBeans();

            // Reset 'active' flag.
            cancelRefresh(ex);

            // Propagate exception to caller.
            throw ex;
        }

        finally {
            // Reset common introspection caches in Spring's core, since we
            // might not ever need metadata for singleton beans anymore...
            resetCommonCaches();
        }
    }
}

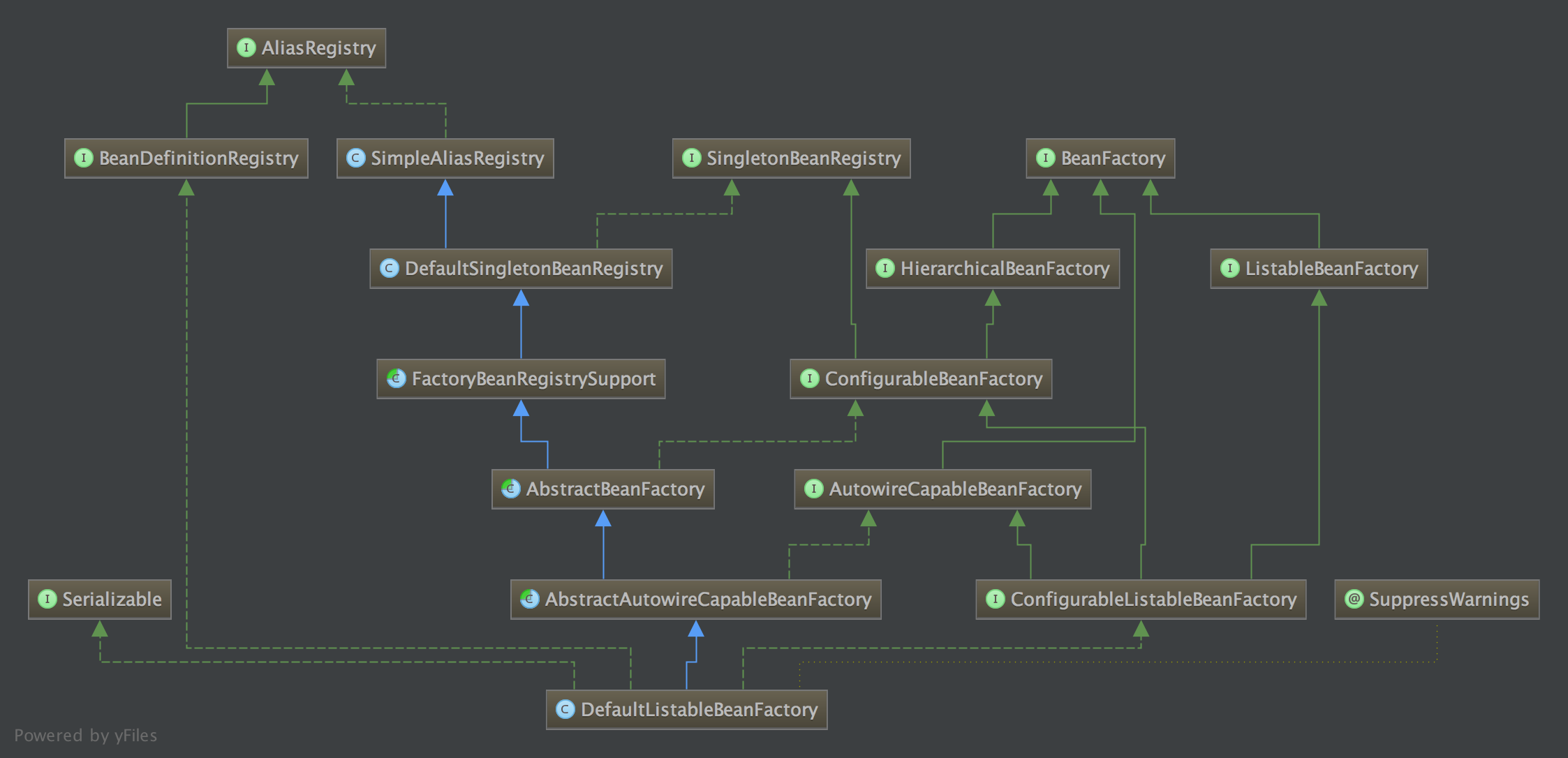

obtainFreshBeanFactory() -> DefaultListableBeanFactory


BeanFactory是Spring的最根的接口，类的工厂接口。

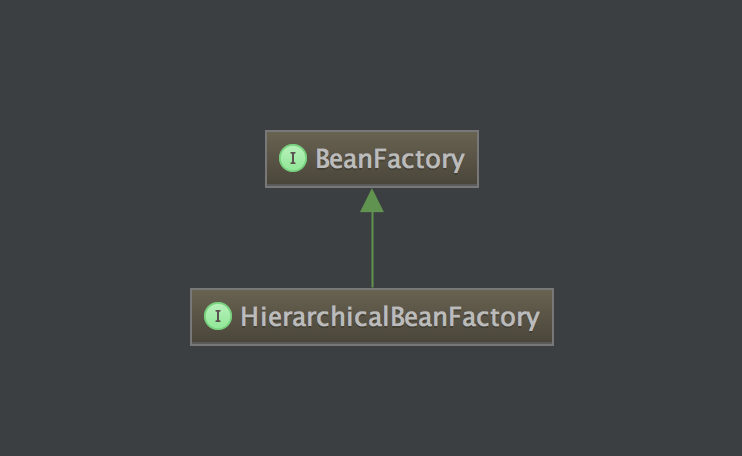

  1. HierarchicalBeanFactory
    HierarchicalBeanFactory接口是在继承BeanFactory的基础上，实现BeanFactory的父子关系。

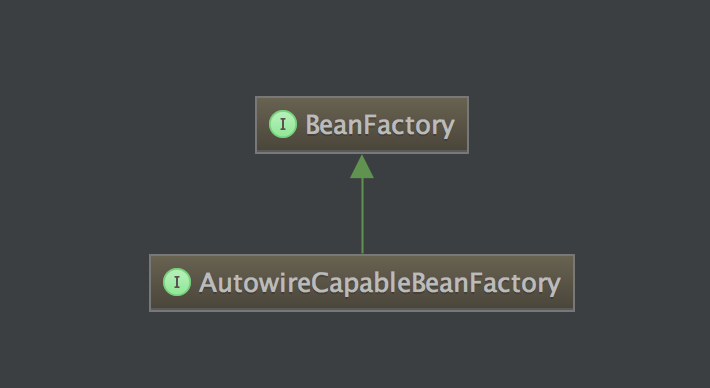

  2. AutowireCapableBeanFactory
    AutowireCapableBeanFactory接口是在继承BeanFactory的基础上，实现Bean的自动装配功能

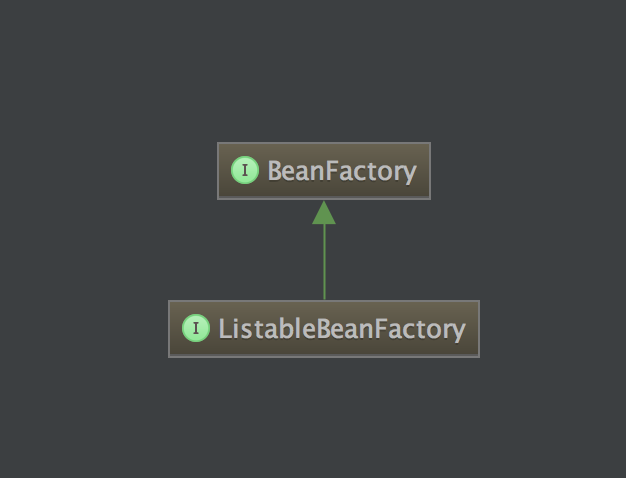

  3. ListableBeanFactory
    ListableBeanFactory接口是在继承BeanFactory的基础上，实现Bean的list集合操作功能

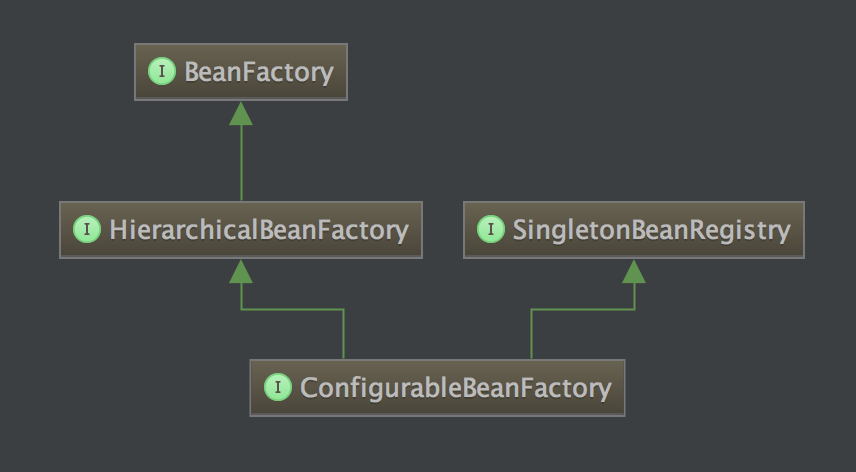

  4. ConfigurableBeanFactory
    ConfigurableBeanFactory接口是在继承HierarchicalBeanFactory的基础上，实现BeanFactory的全部配置管理功能， SingletonBeanRegistry是单例bean的注册接口

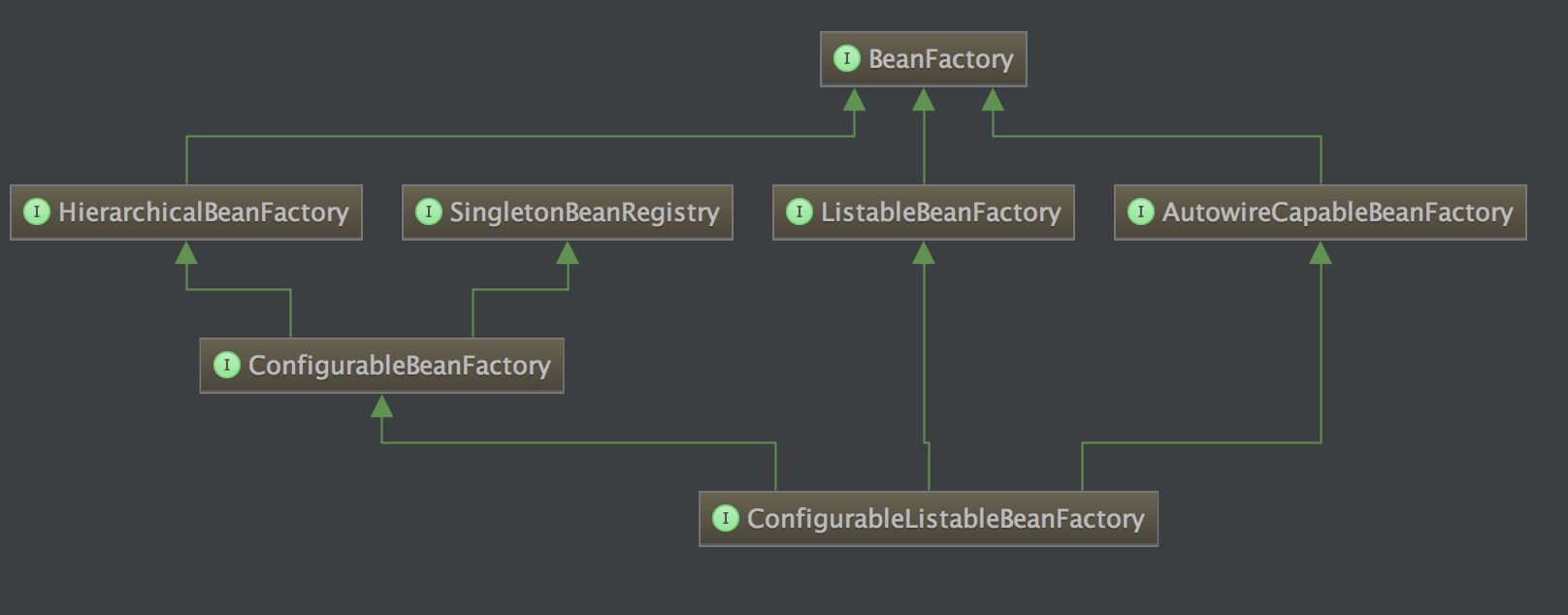

  5. ConfigurableListableBeanFactory
    ConfigurableListableBeanFactory接口是继承AutowireCapableBeanFactory，ListableBeanFactory，ConfigurableBeanFactory三个接口的一个综合接口

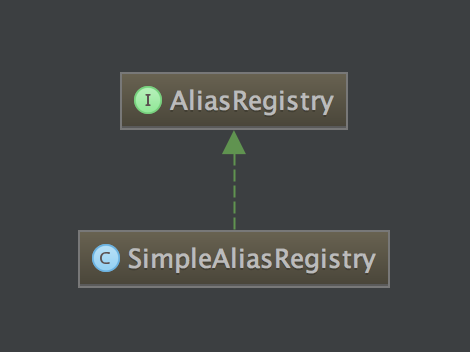

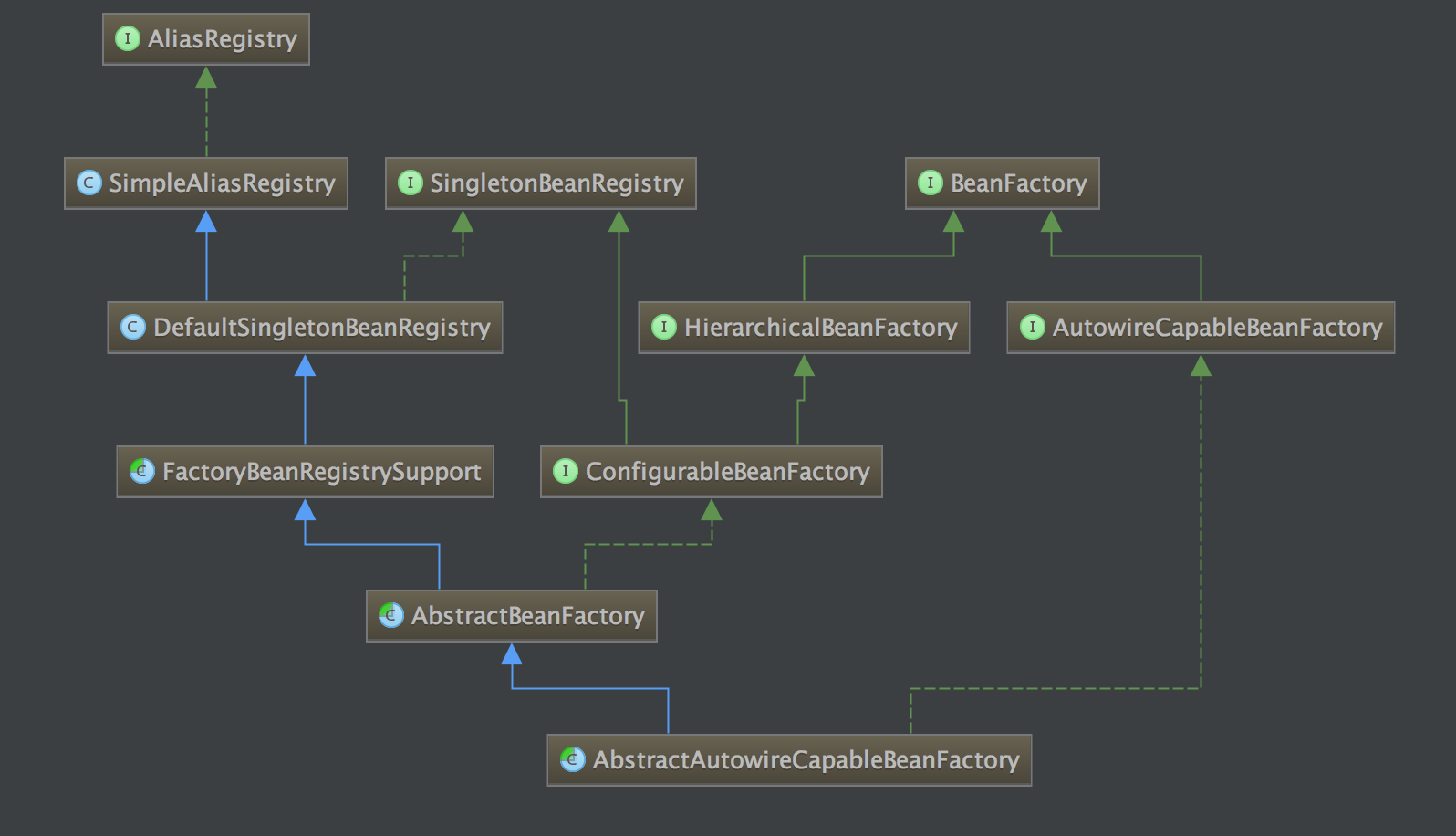

  6. AliasRegistry
    AliasRegistry接口是别名注册接口，SimpleAliasRegistry类是简单的实现别名注册接口的类。

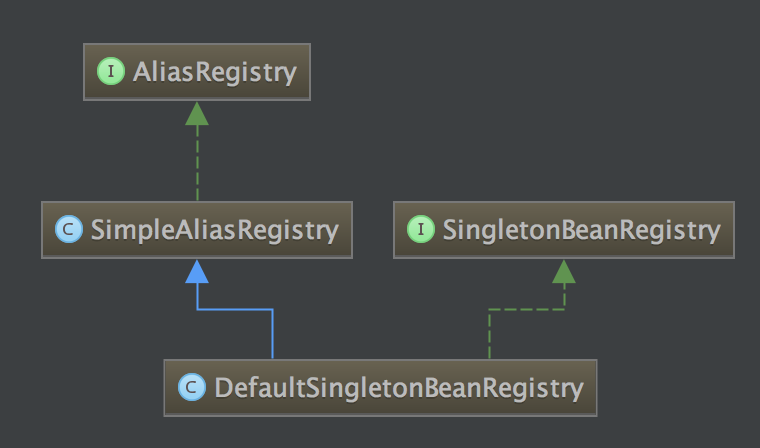

  7. DefaultSingletonBeanRegistry
    DefaultSingletonBeanRegistry是默认的实现SingletonBeanRegistry接口的类，同时，继承类SimpleAliasRegistry.

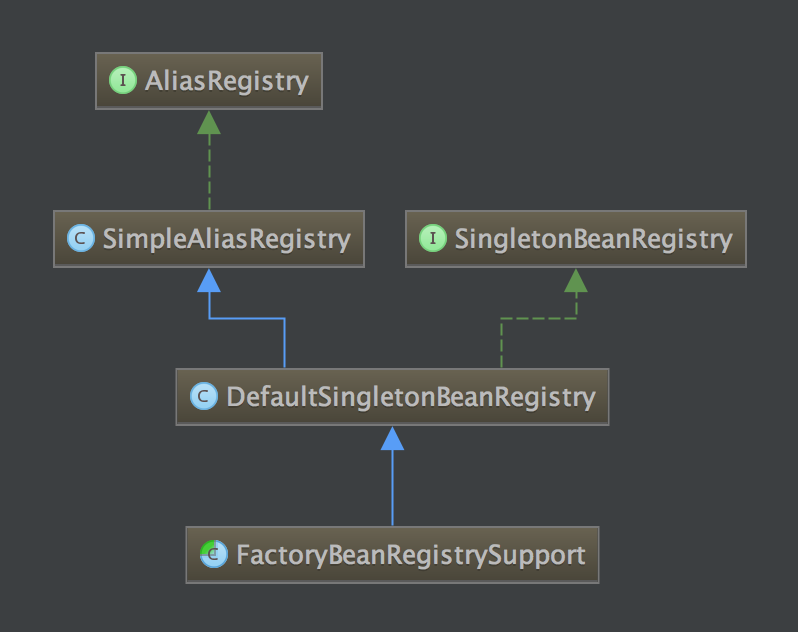

  8. FactoryBeanRegistrySupport
    FactoryBeanRegistrySupport是实现FactoryBean注册的功能实现。继承类DefaultSingletonBeanRegistry.

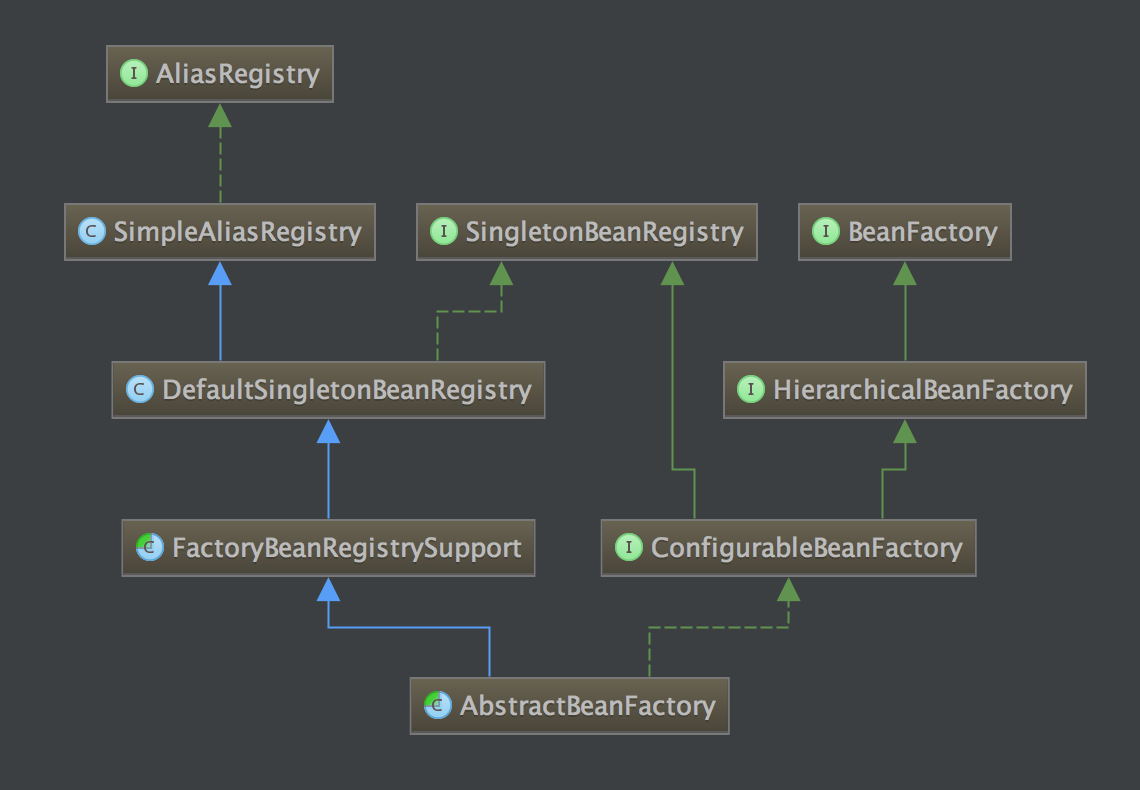

  9. AbstractBeanFactory
  10. AbstractAutowireCapableBeanFactory
    AbstractAutowireCapableBeanFactory是实现接口AutowireCapableBeanFactory，并继承类 AbstractBeanFactory.
prepareBeanFactory(beanFactory)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    // Tell the internal bean factory to use the context's class loader etc.
    beanFactory.setBeanClassLoader(getClassLoader());
    beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
    beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

    // Configure the bean factory with context callbacks.
    // 自动注入的时候忽略相应的事件类（即：spring生命周期接口）
    beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
    beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
    beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
    beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
    beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
    beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
    beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);

    // BeanFactory interface not registered as resolvable type in a plain factory.
    // MessageSource registered (and found for autowiring) as a bean.
    // 设置相应的处理依赖： bean工厂、资源加载器、事件发布、上下文
    beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
    beanFactory.registerResolvableDependency(ResourceLoader.class, this);
    beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
    beanFactory.registerResolvableDependency(ApplicationContext.class, this);

    // Register early post-processor for detecting inner beans as ApplicationListeners.
    // 前期PostProcessor接口，主要用来，将一些 ApplicationListener 事件监听类注册到上下文中
    beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

    // 注册一些默认的类
    // Detect a LoadTimeWeaver and prepare for weaving, if found.
    if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        // Set a temporary ClassLoader for type matching.
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }

    // Register default environment beans.
    if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
        beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
    }
    if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
        beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
    }
    if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
        beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
    }
}
postProcessBeanFactory(beanFactory)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    //
    super.postProcessBeanFactory(beanFactory);
    // 定位扫包位置
    if (this.basePackages != null && this.basePackages.length > 0) {
        this.scanner.scan(this.basePackages);
    }
    if (!this.annotatedClasses.isEmpty()) {
        this.reader.register(ClassUtils.toClassArray(this.annotatedClasses));
    }
}

@Override
protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    // web 环境上下文处理器
    beanFactory.addBeanPostProcessor(new WebApplicationContextServletContextAwareProcessor(this));
    beanFactory.ignoreDependencyInterface(ServletContextAware.class);
    registerWebApplicationScopes();
}
invokeBeanFactoryPostProcessors(beanFactory)
1
2
3
4
5
6
7
8
9
10
11
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    // 执行前置处理器，可以自定义
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

    // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
    // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
    if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }
}
