Mybatis

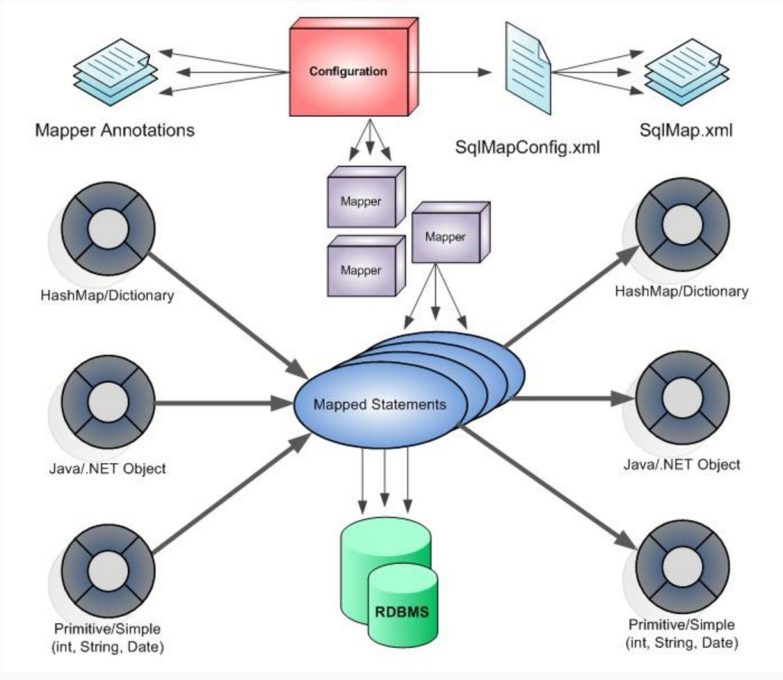

XML 解析成 Configuration

org.apache.ibatis.builder.xml.XMLConfigBuilder#parseConfiguration

public Configuration parse() {
  if (parsed) {
    throw new BuilderException("Each XMLConfigBuilder can only be used once.");
  }
  parsed = true;
  parseConfiguration(parser.evalNode("/configuration"));
  return configuration;
}

private void parseConfiguration(XNode root) {
  try {
    //issue #117 read properties first
    propertiesElement(root.evalNode("properties"));
    Properties settings = settingsAsProperties(root.evalNode("settings"));
    loadCustomVfs(settings);
    typeAliasesElement(root.evalNode("typeAliases"));
    pluginElement(root.evalNode("plugins"));
    objectFactoryElement(root.evalNode("objectFactory"));
    objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
    reflectorFactoryElement(root.evalNode("reflectorFactory"));
    settingsElement(settings);
    // read it after objectFactory and objectWrapperFactory issue #631
    environmentsElement(root.evalNode("environments"));
    databaseIdProviderElement(root.evalNode("databaseIdProvider"));
    typeHandlerElement(root.evalNode("typeHandlers"));
    mapperElement(root.evalNode("mappers"));
  } catch (Exception e) {
    throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
  }
}

mapper.xml 解析

configuration.mappedStatements
org.apache.ibatis.builder.xml.XMLConfigBuilder#mapperElement

private void mapperElement(XNode parent) throws Exception {
  if (parent != null) {
    for (XNode child : parent.getChildren()) {
      if ("package".equals(child.getName())) {
        String mapperPackage = child.getStringAttribute("name");
        configuration.addMappers(mapperPackage);
      } else {
        String resource = child.getStringAttribute("resource");
        String url = child.getStringAttribute("url");
        String mapperClass = child.getStringAttribute("class");
        if (resource != null && url == null && mapperClass == null) {
          ErrorContext.instance().resource(resource);
          InputStream inputStream = Resources.getResourceAsStream(resource);
          XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
          mapperParser.parse();
        } else if (resource == null && url != null && mapperClass == null) {
          ErrorContext.instance().resource(url);
          InputStream inputStream = Resources.getUrlAsStream(url);
          XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
          mapperParser.parse();
        } else if (resource == null && url == null && mapperClass != null) {
          Class<?> mapperInterface = Resources.classForName(mapperClass);
          configuration.addMapper(mapperInterface);
        } else {
          throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
        }
      }
    }
  }
}

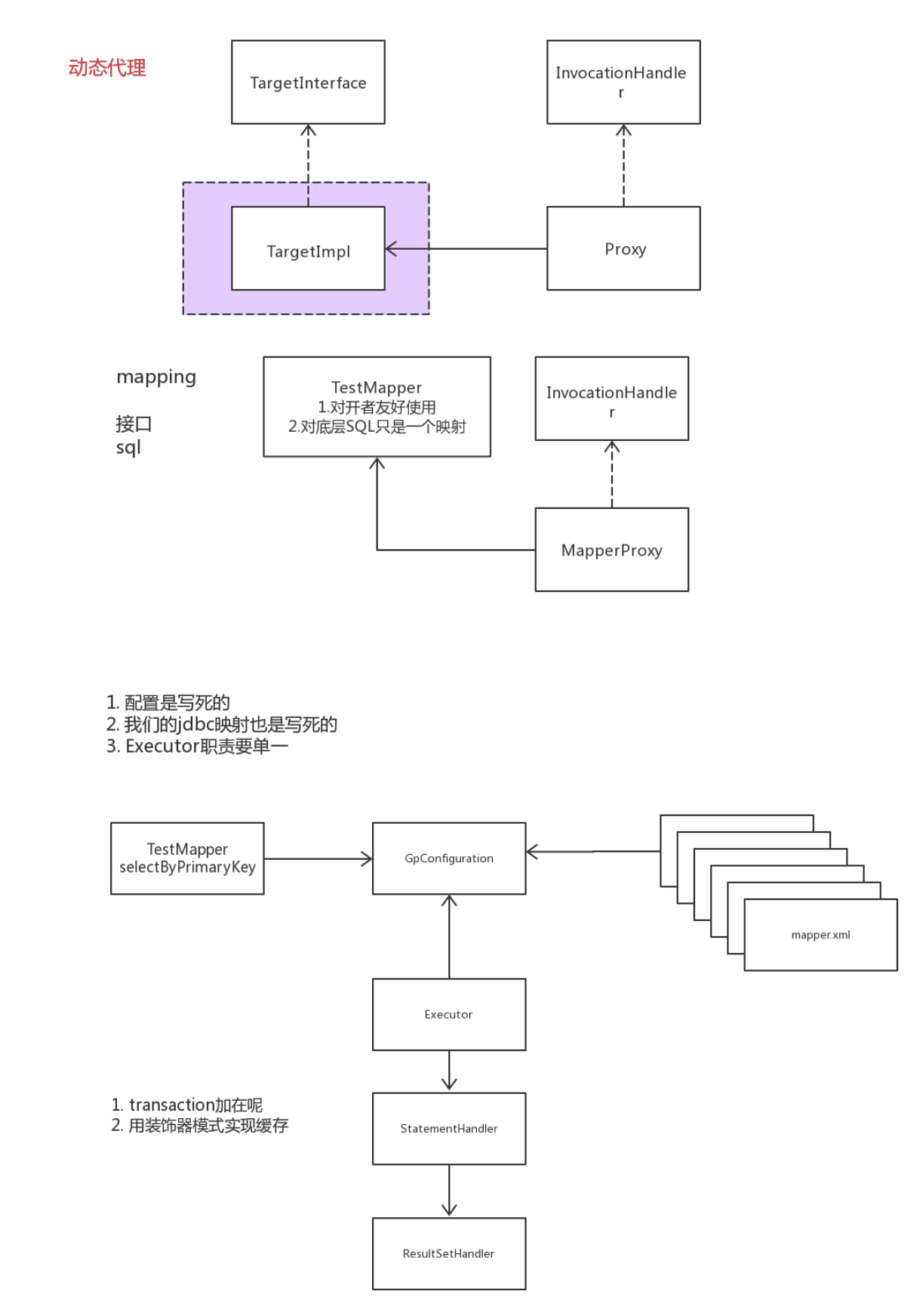

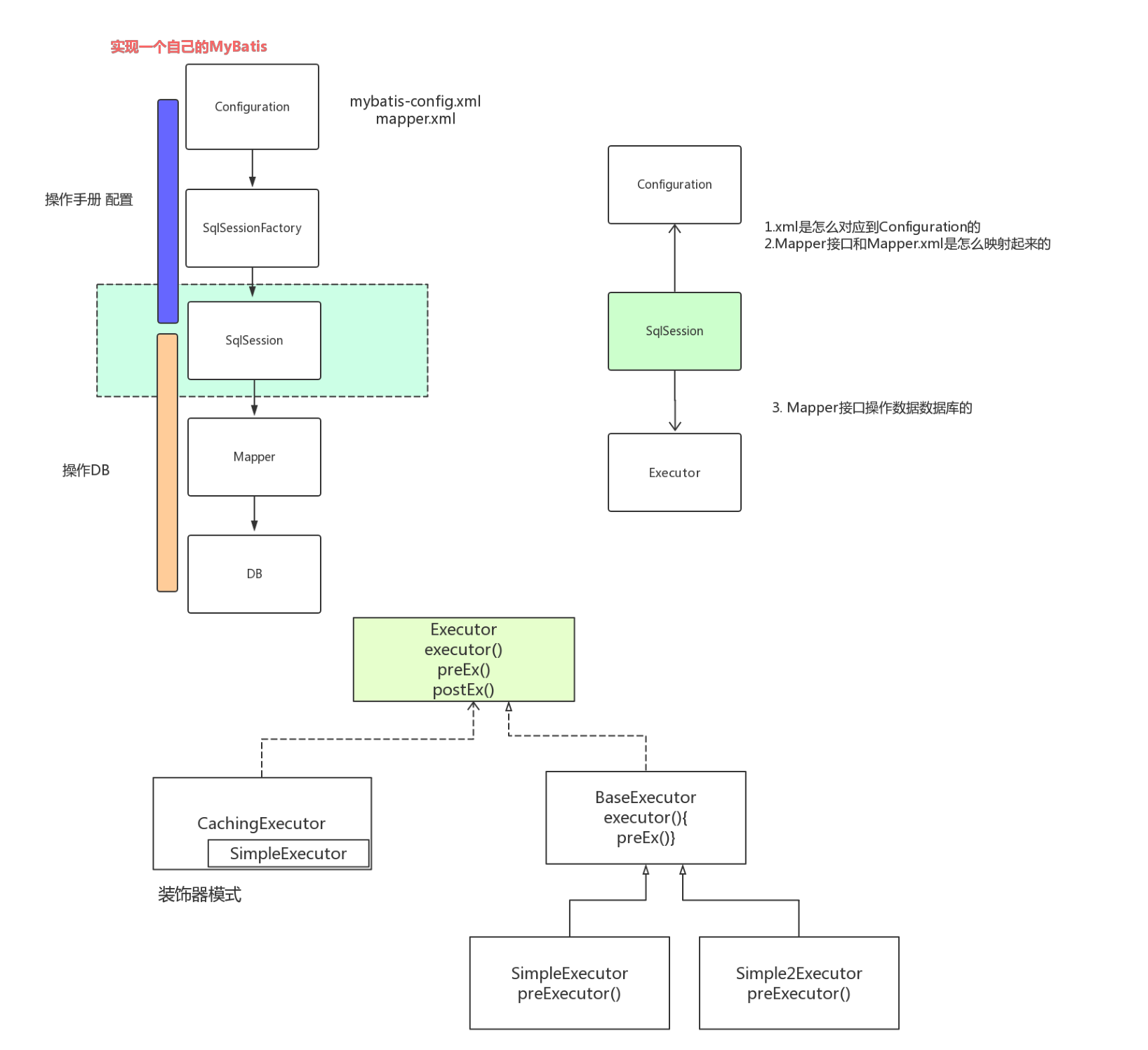

装饰器模式实现缓存功能

org.apache.ibatis.executor.CachingExecutor

public class CachingExecutor implements Executor {

  private final Executor delegate;
  private final TransactionalCacheManager tcm = new TransactionalCacheManager();

  public CachingExecutor(Executor delegate) {
    this.delegate = delegate;
    delegate.setExecutorWrapper(this);
  }

CachingExecutor 和 SimpleExecutor 同源，所以在CachingExecutor这个类中，使用了装饰器模式，但是调用方式是委托.
在已有的方法的基础上，在进行包装，其实就是功能的增强

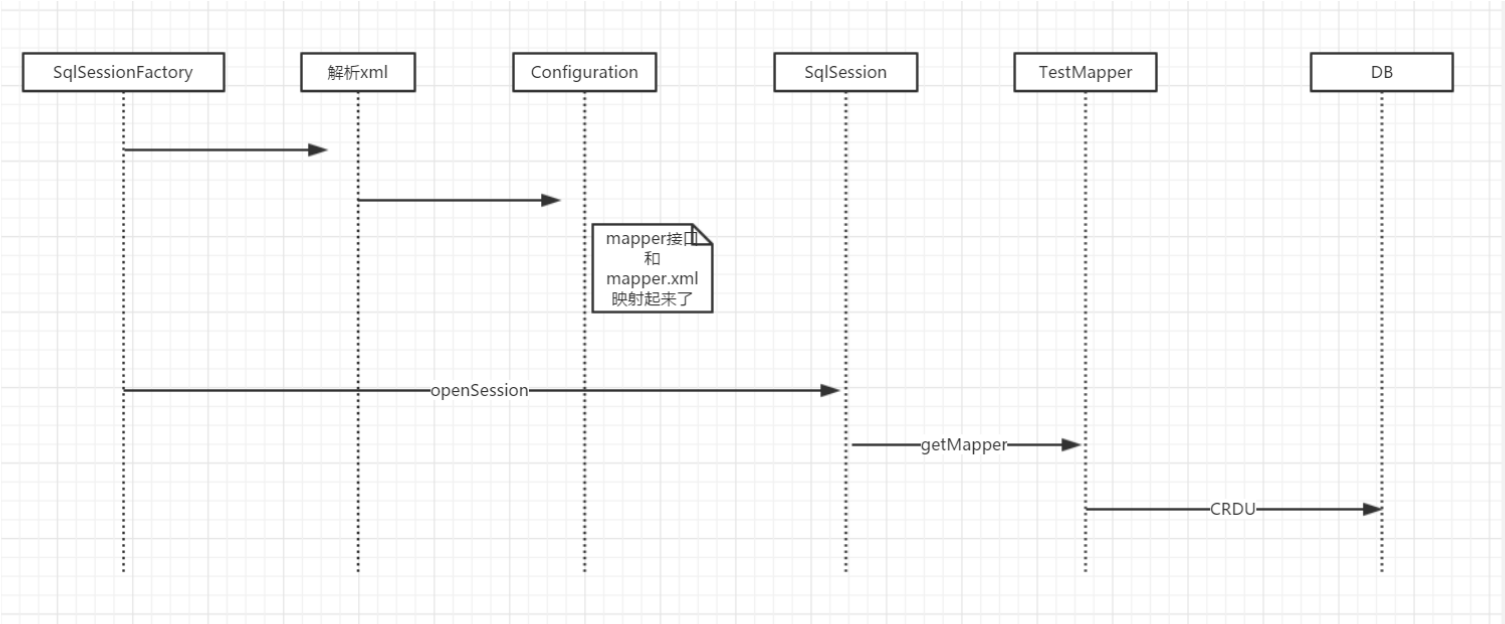

Mapper实现类 + 代理类

org.apache.ibatis.binding.MapperProxy

获取Mapper代理类

public class DefaultSqlSession implements SqlSession {

    // ...

    @Override
    public <T> T getMapper(Class<T> type) {
        return configuration.<T>getMapper(type, this);
    }

    // ...

}

public class configuration{

    protected final MapperRegistry mapperRegistry = new MapperRegistry(this);
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        return mapperRegistry.getMapper(type, sqlSession);
    }
}

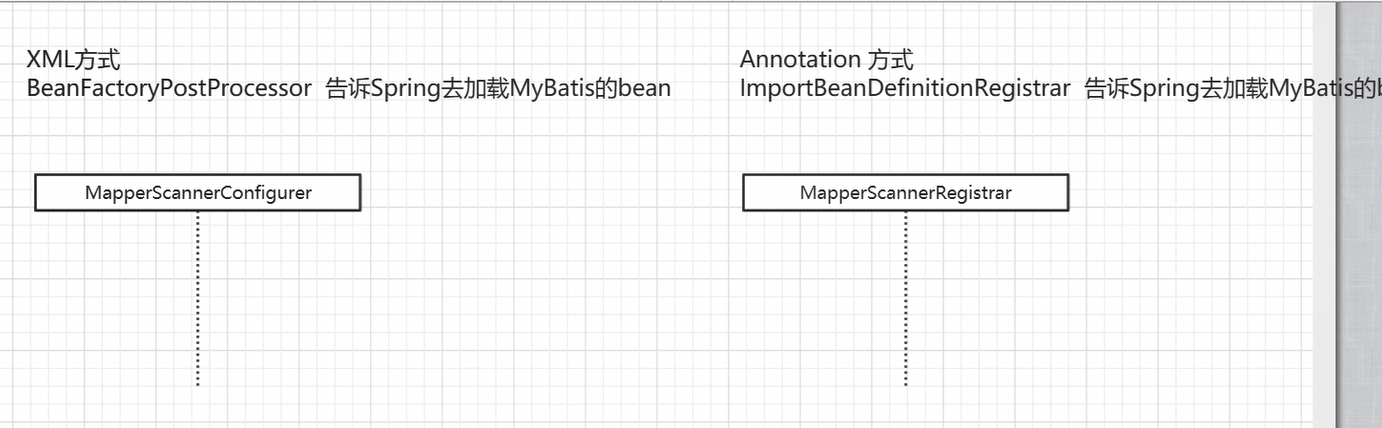

在spring中, 使用MapperScannerConfigurer， 配置相关mapper接口路径，进行扫包生成代理类

public class MapperScannerConfigurer implements BeanDefinitionRegistryPostProcessor, InitializingBean, ApplicationContextAware, BeanNameAware {

  private String basePackage;

  // 。。。

}

可以看到MapperScannerConfigurer继承了BeanDefinitionRegistryPostProcessor，这个接口是spring创建bean的后置处理器,所以该处理器会被spring执行，并且创建代理bean
basePackage 属性是让你为映射器接口文件设置基本的包路径。 你可以使用分号或逗号 作为分隔符设置多于一个的包路径。每个映射器将会在指定的包路径中递归地被搜索到。
接下来让我们看一下MapperScannerConfigurer类的源码 看看是如何自动扫描的。

public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
    if (this.processPropertyPlaceHolders) {
      processPropertyPlaceHolders();
    }

    ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
    scanner.setAddToConfig(this.addToConfig);
    scanner.setAnnotationClass(this.annotationClass);
    scanner.setMarkerInterface(this.markerInterface);
    scanner.setSqlSessionFactory(this.sqlSessionFactory);
    scanner.setSqlSessionTemplate(this.sqlSessionTemplate);
    scanner.setSqlSessionFactoryBeanName(this.sqlSessionFactoryBeanName);
    scanner.setSqlSessionTemplateBeanName(this.sqlSessionTemplateBeanName);
    scanner.setResourceLoader(this.applicationContext);
    scanner.setBeanNameGenerator(this.nameGenerator);
    scanner.registerFilters();
    scanner.scan(StringUtils.tokenizeToStringArray(this.basePackage, ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS));
}

public class ClassPathMapperScanner extends ClassPathBeanDefinitionScanner {

    // ...

    @Override
      public Set<BeanDefinitionHolder> doScan(String... basePackages) {
        Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);

        if (beanDefinitions.isEmpty()) {
          logger.warn("No MyBatis mapper was found in '" + Arrays.toString(basePackages) + "' package. Please check your configuration.");
        } else {
          processBeanDefinitions(beanDefinitions);
        }

        return beanDefinitions;
      }

      private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
        GenericBeanDefinition definition;
        for (BeanDefinitionHolder holder : beanDefinitions) {
          definition = (GenericBeanDefinition) holder.getBeanDefinition();

          if (logger.isDebugEnabled()) {
            logger.debug("Creating MapperFactoryBean with name '" + holder.getBeanName()
              + "' and '" + definition.getBeanClassName() + "' mapperInterface");
          }

          // the mapper interface is the original class of the bean
          // but, the actual class of the bean is MapperFactoryBean
          definition.getConstructorArgumentValues().addGenericArgumentValue(definition.getBeanClassName()); // issue #59
          definition.setBeanClass(this.mapperFactoryBean.getClass());

          definition.getPropertyValues().add("addToConfig", this.addToConfig);

          boolean explicitFactoryUsed = false;
          if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
            definition.getPropertyValues().add("sqlSessionFactory", new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
            explicitFactoryUsed = true;
          } else if (this.sqlSessionFactory != null) {
            definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
            explicitFactoryUsed = true;
          }

          if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
            if (explicitFactoryUsed) {
              logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
            }
            definition.getPropertyValues().add("sqlSessionTemplate", new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
            explicitFactoryUsed = true;
          } else if (this.sqlSessionTemplate != null) {
            if (explicitFactoryUsed) {
              logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
            }
            definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
            explicitFactoryUsed = true;
          }

          if (!explicitFactoryUsed) {
            if (logger.isDebugEnabled()) {
              logger.debug("Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
            }
            definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
          }
        }
      }

    // ...

}

真正获取mapper代理对象的类是MapperFactoryBean

@Override
  public T getObject() throws Exception {
    return getSqlSession().getMapper(this.mapperInterface);
}

可以看到，实际上还是有sqlSession获取MapperProxy对象的
这个factoryBean是什么时候注入进去的呢

public class ClassPathMapperScanner extends ClassPathBeanDefinitionScanner {
    // ...

    private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    GenericBeanDefinition definition;
    for (BeanDefinitionHolder holder : beanDefinitions) {
      definition = (GenericBeanDefinition) holder.getBeanDefinition();

      if (logger.isDebugEnabled()) {
        logger.debug("Creating MapperFactoryBean with name '" + holder.getBeanName()
          + "' and '" + definition.getBeanClassName() + "' mapperInterface");
      }

      // the mapper interface is the original class of the bean
      // but, the actual class of the bean is MapperFactoryBean
      definition.getConstructorArgumentValues().addGenericArgumentValue(definition.getBeanClassName()); // issue #59
      definition.setBeanClass(this.mapperFactoryBean.getClass());

      definition.getPropertyValues().add("addToConfig", this.addToConfig);

      boolean explicitFactoryUsed = false;
      if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
        definition.getPropertyValues().add("sqlSessionFactory", new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionFactory != null) {
        definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
        explicitFactoryUsed = true;
      }

      if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
        if (explicitFactoryUsed) {
          logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionTemplate != null) {
        if (explicitFactoryUsed) {
          logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
        explicitFactoryUsed = true;
      }

      if (!explicitFactoryUsed) {
        if (logger.isDebugEnabled()) {
          logger.debug("Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
        }
        definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
      }
    }
  }

    // ...
}

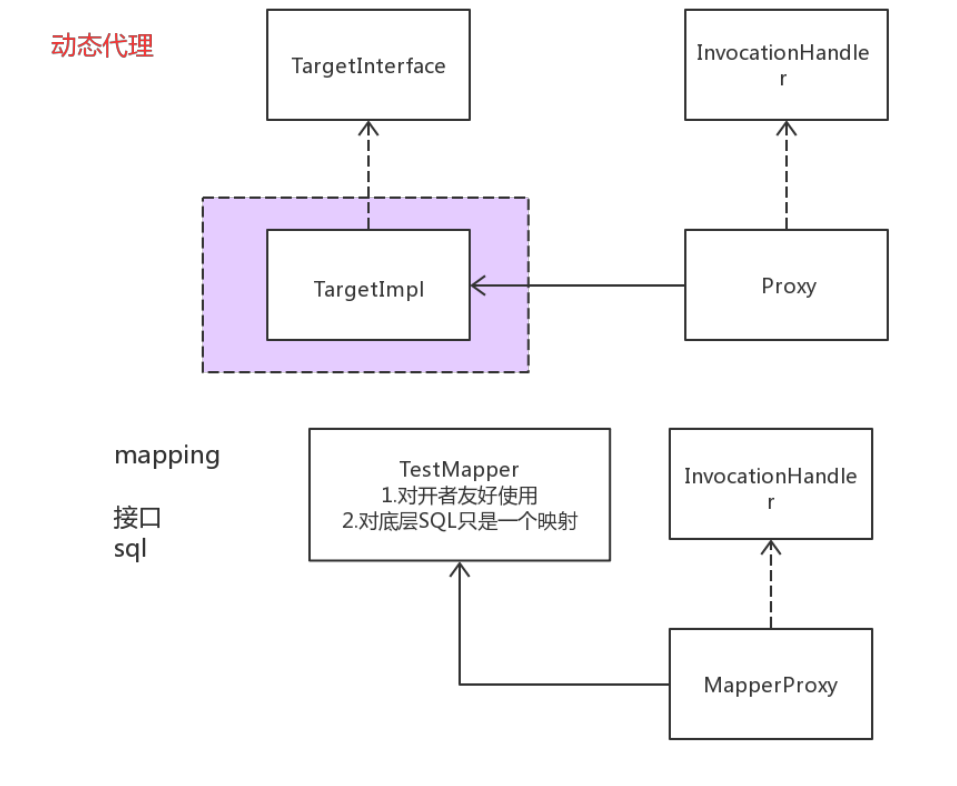

Mybatis 的动态代理

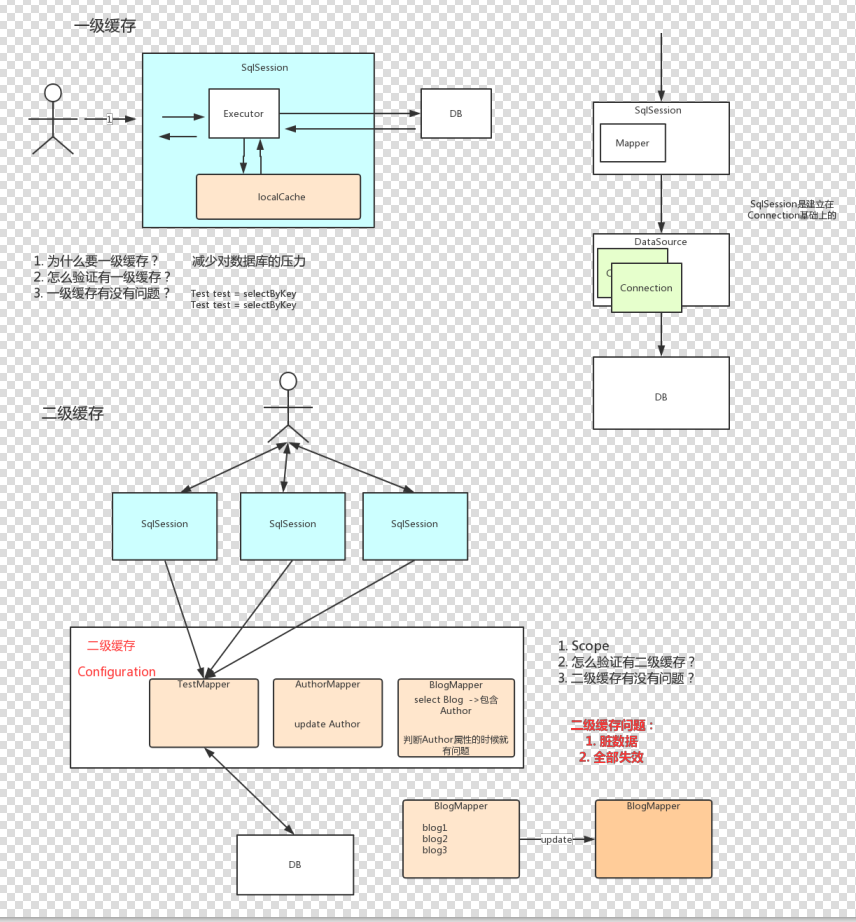

Mybatis 的缓存

¶一级缓存

一级缓存是指SQLSession，一级缓存的作用域是SQlSession, Mabits默认开启一级缓存。 在同一个SqlSession中，执行相同的SQL查询时；第一次会去查询数据库，并写在缓存中，第二次会直接从缓存中取。 当执行SQL时候两次查询中间发生了增删改的操作，则SQLSession的缓存会被清空。 每次查询会先去缓存中找，如果找不到，再去数据库查询，然后把结果写到缓存中。 Mybatis的内部缓存使用一个HashMap，key为hashcode+statementId+sql语句。Value为查询出来的结果集映射成的java对象。 SqlSession执行insert、update、delete等操作commit后会清空该SQLSession缓存。多个sqlSession之间不能共享缓存

public abstract class BaseExecutor implements Executor {
    protected PerpetualCache localCache;
    protected PerpetualCache localOutputParameterCache;
    // ...
    @Override
  public CacheKey createCacheKey(MappedStatement ms, Object parameterObject, RowBounds rowBounds, BoundSql boundSql) {
    if (closed) {
      throw new ExecutorException("Executor was closed.");
    }
    CacheKey cacheKey = new CacheKey();
    cacheKey.update(ms.getId());
    cacheKey.update(rowBounds.getOffset());
    cacheKey.update(rowBounds.getLimit());
    cacheKey.update(boundSql.getSql());
    List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
    TypeHandlerRegistry typeHandlerRegistry = ms.getConfiguration().getTypeHandlerRegistry();
    // mimic DefaultParameterHandler logic
    for (ParameterMapping parameterMapping : parameterMappings) {
      if (parameterMapping.getMode() != ParameterMode.OUT) {
        Object value;
        String propertyName = parameterMapping.getProperty();
        if (boundSql.hasAdditionalParameter(propertyName)) {
          value = boundSql.getAdditionalParameter(propertyName);
        } else if (parameterObject == null) {
          value = null;
        } else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
          value = parameterObject;
        } else {
          MetaObject metaObject = configuration.newMetaObject(parameterObject);
          value = metaObject.getValue(propertyName);
        }
        cacheKey.update(value);
      }
    }
    if (configuration.getEnvironment() != null) {
      // issue #176
      cacheKey.update(configuration.getEnvironment().getId());
    }
    return cacheKey;
  }

  @Override
  public boolean isCached(MappedStatement ms, CacheKey key) {
    return localCache.getObject(key) != null;
  }
    @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    BoundSql boundSql = ms.getBoundSql(parameter);
    CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
    return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
 }
 // ...
 private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    // 结果缓存数据
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
      list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    } finally {
      localCache.removeObject(key);
    }
    localCache.putObject(key, list);
    if (ms.getStatementType() == StatementType.CALLABLE) {
      localOutputParameterCache.putObject(key, parameter);
    }
    return list;
  }
    // ...
}

¶一级缓存问题

1. sqlsession只针对一session, 关闭后缓存就不在了
2. 多线程下的不可见性，另外一个sqlSession修改的数据，缓存的sqlSession无法查到最新的数据。（几率太小，因为生命周期短）
3. 一旦有update/insert/delete, 缓存会全部刷新

¶二级缓存

二级缓存是mapper级别的，Mybatis默认是没有开启二级缓存的。 第一次调用mapper下的SQL去查询用户的信息，查询到的信息会存放代该mapper对应的二级缓存区域。 第二次调用namespace下的mapper映射文件中，相同的sql去查询用户信息，会去对应的二级缓存内取结果。 如果调用相同namespace下的mapepr映射文件中增删改sql，并执行了commit操作，会把缓存清空，二级缓存可以跨sqlSession

public final class MappedStatement {
    // ...
    private Cache cache;
    // ...
}

@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
    throws SQLException {
  Cache cache = ms.getCache();
  if (cache != null) {
    flushCacheIfRequired(ms);
    if (ms.isUseCache() && resultHandler == null) {
      ensureNoOutParams(ms, boundSql);
      @SuppressWarnings("unchecked")
      List<E> list = (List<E>) tcm.getObject(cache, key);
      if (list == null) {
        list = delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
        tcm.putObject(cache, key, list); // issue #578 and #116
      }
      return list;
    }
  }
  return delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}

¶一般情况下，为什么不使用二级缓存

1. 脏数据
   该缓存是以namespace为单位的（也就是一个Mapper.xml文件），不同namespace下的操作互不影响。所有对数据表的改变操作都会刷新缓存。但是一般不要用二级缓存，例如在UserMapper.xml中有大多数针对user表的操作。但是在另一个XXXMapper.xml中，还有针对user单表的操作。这会导致user在两个命名空间下的数据不一致。如果在UserMapper.xml中做了刷新缓存的操作，在XXXMapper.xml中缓存仍然有效，如果有针对user的单表查询，使用缓存的结果可能会不正确，读到脏数据。
   如果使用其他缓存，比如：Redis比之一、二级缓存的好处很多，Redis可以搭建在其他服务器上，缓存容量可扩展。Redis可以灵活的使用在需要缓存的数据上，比如一些热点数据。
2. 全部失效
   一旦有update/insert/delete, 缓存会全部刷新

MyBatis-spring 整合spring

¶sqlSession、Mapper生命周期

sqlSession 在没有事物的情况加，是request/method级别的（每次获取都是不同的connection），在有事物的情况下，是事物范围内级别的（每次获取都是相同的connection）

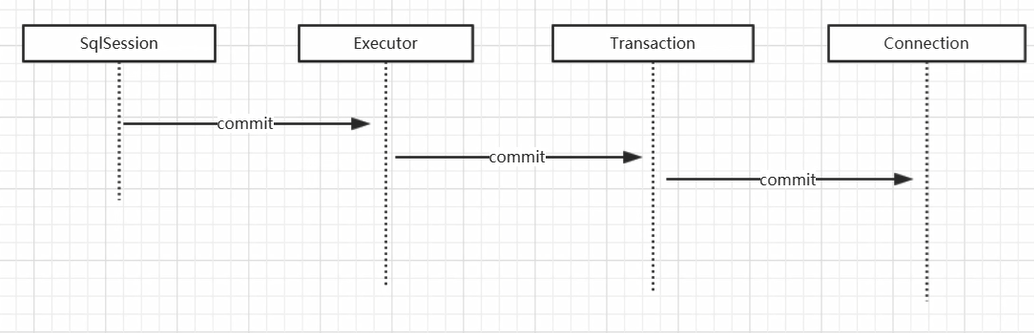

¶MyBatis 事物

问题总结

¶SqlSessionFactory\SqlSession\Mapper 推荐作用域

类型	scope
SqlSessionFactoryBuilder	method
SqlSessionFactory	application
SqlSession	request/method(可以认为是线程级)
Mapper	method

¶DefaultSqlSession 为什么需要 configuration

需要拿到相关的配置文件，才能根据配置的参数操作数据库
